Pin Columns

<< Click to Display Table of Contents >>

Navigation:  Grid and Tree Features >

Pin Columns


Pin Columns and Bands:

This functionality is similar to freeze pane in Excel. The column can be 'locked' to the left or right. When scrolling the pinned column will always be visible.


To Pin a column right click on the column header and choose Fixed Left or Fixed Right. To remove a pinned column choose Not Fixed. The pin options are the last 3 items in the popup menu.



in the example below

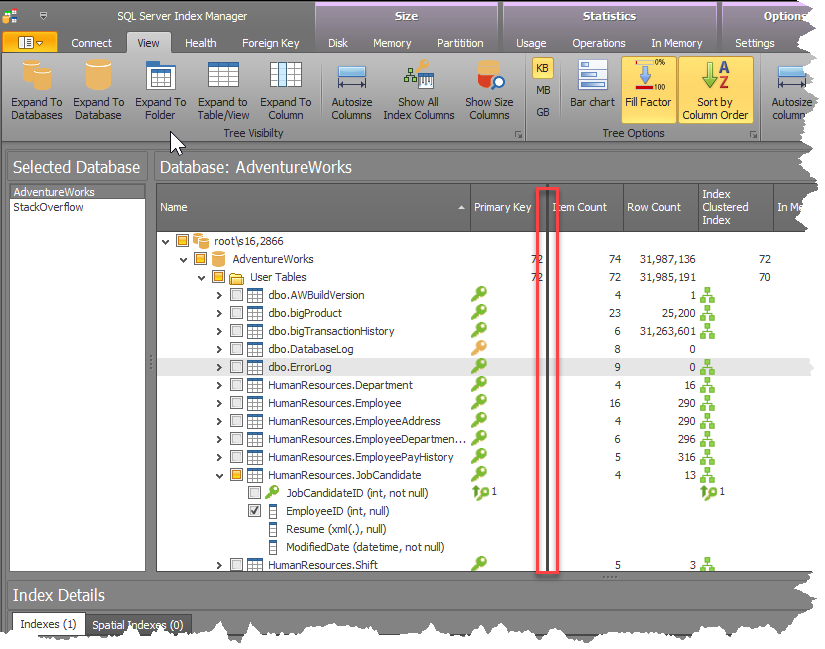

After pinning column you can see the line has moved  from the Name column to the primary key column indicating columns Name and Primary Key are left pinned.







Pin column in Grid

As above.



Pin Column in Banded Grid


To pin the band. Right click on the band . You can only  pin bands not the column
